Technical data-sheet

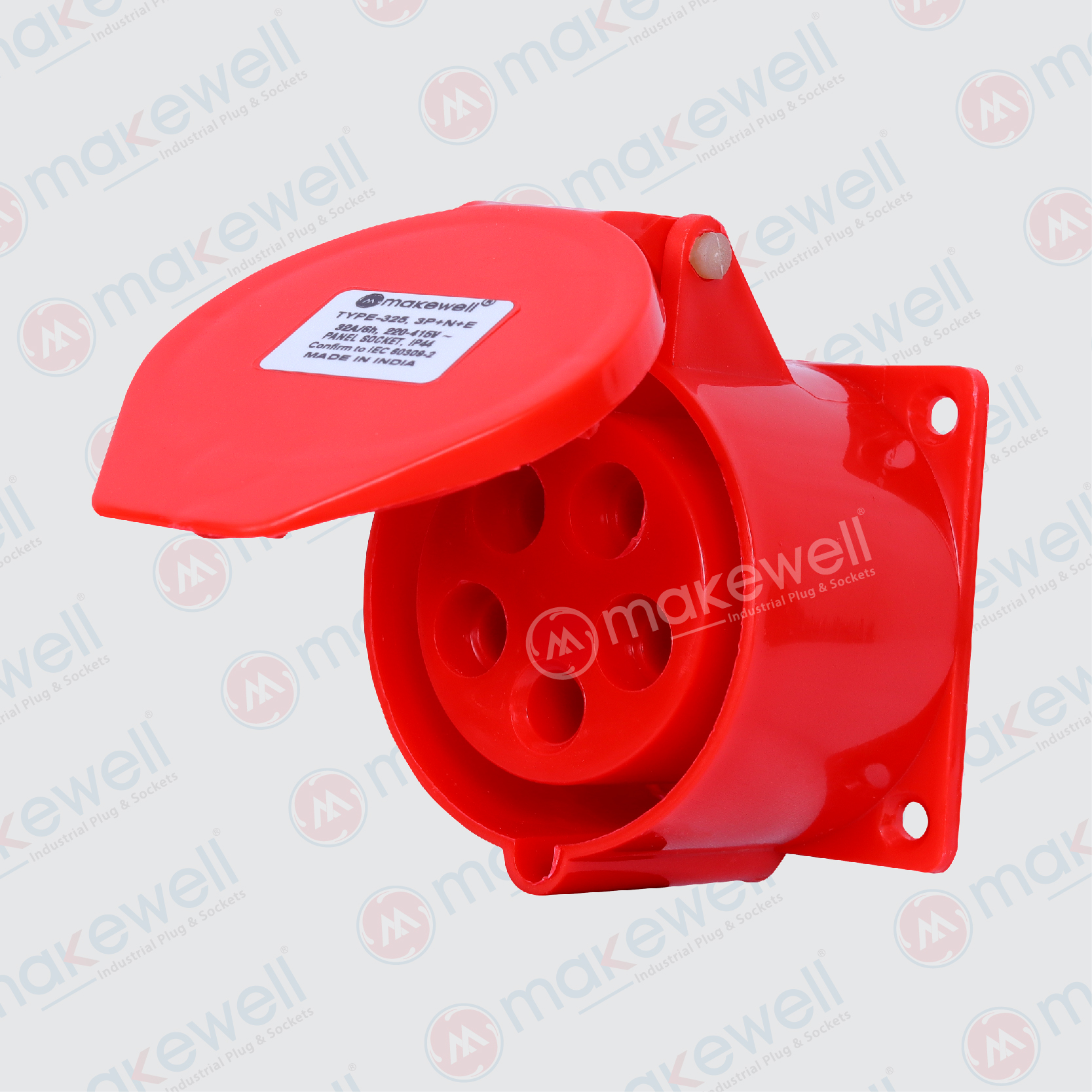

MW-315 16A 5 PIN Panel Socket
Makewell Tech’s 16A 5 Pin Panel Socket delivers safe, efficient three-phase power connections for industrial panels and machinery. Designed for reliability in demanding environments.
The Makewell Tech 16A 5 Pin Panel Socket is engineered for professionals who demand dependable, high-quality power connections in industrial and commercial environments. Purpose-built for three-phase electrical systems, this robust panel-mounted socket provides consistent power distribution for machinery, equipment, and production lines.
Designed for Professional Performance
Unlike conventional outlets, the Makewell Tech 16A 5 Pin Panel Socket mounts securely into control panels, distribution boards, and industrial enclosures. Its 16A current rating makes it ideal for powering medium-duty equipment such as motors, compressors, and automated systems that require reliable three-phase power.
Whether installed in a workshop, production floor, construction site, or warehouse, this panel socket helps ensure your operations run safely and efficiently.
Key Features and Benefits
- 16A Current Capacity
Handles medium-duty electrical loads without overheating, supporting continuous operation of three-phase equipment. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), neutral, and earth, providing balanced three-phase power and complete grounding protection. - Durable Thermoplastic Housing
Manufactured from impact-resistant materials that withstand mechanical stress, temperature fluctuations, and long-term use. - Secure Mounting Design
Panel installation ensures a stable, vibration-resistant fit that stays connected even in demanding environments. - Ingress Protection
Models available with IP44 and higher ratings to protect against dust and splashing water. - Easy Installation and Maintenance
Clear terminal markings and ergonomic design simplify wiring and inspection, reducing installation time and errors.
Applications Across Industries
The Makewell Tech 16A 5 Pin Panel Socket is trusted in a variety of sectors, including:
- Manufacturing Plants: Supplying three-phase power to machinery, conveyor systems, and control cabinets.
- Construction Sites: Distributing power safely to tools, mixers, and lighting.
- Warehouses: Powering automated material handling and storage systems.
- Workshops: Connecting industrial ovens, compressors, and heavy-duty tools.
- Agriculture: Running irrigation pumps and processing equipment in rugged environments.
Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44 or higher
- Operating Temperature: -25°C to +40°C
- Mounting: Panel installation with secure screw fixing
- Standards Compliance: IEC/EN 60309
Easy Installation
Mounting the Makewell Tech 16A 5 Pin Panel Socket is straightforward:
- Prepare the Panel: Cut an opening according to the provided dimensions.
- Wire Connections: Strip insulation and insert conductors into the clearly marked terminals.
- Secure Terminals: Tighten screws to create firm, vibration-resistant connections.
- Mount the Socket: Fix securely into the panel cutout.
- Test the Assembly: Use a continuity tester to verify safe, correct wiring.
- Important: Installation should be performed by a qualified electrician.
Why Choose Makewell Tech?
Makewell Tech is dedicated to delivering robust, reliable power solutions that professionals trust. The 16A 5 Pin Panel Socket combines safety, durability, and compliance with international standards—helping you power your equipment with confidence.
